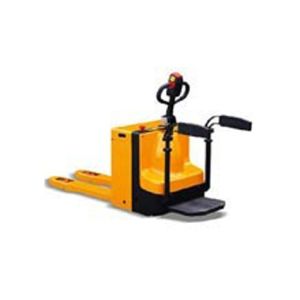

Full-Electric Pallet truck TE/TK series

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : HYDMAN

Certification : EC declaration

Price : by communication

Packaging Details : none packing

Delivery Time : 60 days

Payment Terms : 30%TT as deposit,70%TT on copy of BL.

Supply Ability : 10000pcs/year

Contact Now

Heavy Duty Design

  • Maneuver loads up ramps and dockboards effortlessly.
  • Compact design combines with new technology, making this pallet truck ideal for narrow, cramped aisles. shortest head length in the market permits the best possible maneuverability.
  • Smooth stepless speed control with European technology.
  • Power unit with European technology.
  • Powerfull traction battery.
  • DC driving motor with European technology.
  • Drive unit with electromagnetic brake.
  • Conforms to EN1726 and EN1175-1.

Model

TE20S

TE20L

TK20S

TK20L

Type

without platform

with platform

Capacity

(kg)

2000

2000

Load Center

C (mm)

600

600

Max. Fork Height

H (mm)

205

205

Min. Fork Height

h (mm)

85

85

Fork Length

L1 (mm)

1150

1150

Individual Fork Width

b (mm)

160

160

Wheel Base

y (mm)

1406

1406

Turning Radius

Wa (mm)

1608

1946

Traveling Speed With/Without Load

(Km/h)

3.6/5.4

3.6/5.4

Lifting Speed With/Without Load

(mm/s)

22/32

22/32

Lowering Speed With/Without Load

(mm/s)

50/55

50/55

Drive Wheel

1200W, Ø250mm

1200W, Ø250mm

Power Unit (lifting motor)

(W/V)

800/24

800/24

Traction Battery

24V/210Ah, 185kg

24V/210Ah, 185kg

Battery Charger

25A/24V

25A/24V

Overall Dimension (L×W×H)

(mm)

1781×690×1305

2125×690×1305

Fork Overall Width

B (mm)

530

680

530

680

Net Weight

(kg)

324

329

338

343

Tiller

O

O

O

O

O = Option
