Electric forklift CPD30J

Product Categories

HYDMAN ENTERPRISE COMPANY LTD.

Contact Now

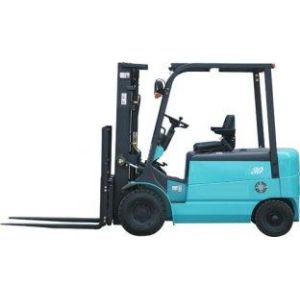

Name: Electric forklift CPD30J
Brand: HYDMAN
Price: 1 USD

Place of Origin : China

Brand Name : HYDMAN

Certification : CE

Price : by communication

Packaging Details : none packing

Delivery Time : 60 days

Payment Terms : 30%TT as deposit,70%TT on copy of BL.

Supply Ability : 10000pcs/year

Contact Now

General	Model				CPD30J
	Power type				Battery
	Rated capacity			kg	3000
	Load center			mm	500
Dimensions	Lift height		H	mm	3000
	Free lift height		E	mm	145
	Fork size			mm	1070×125×45
	Fork outside spread (Min./Max)			mm	250/1100
	Mast tilt angle (forward/backward)		α/β	deg	40704
	Overall dimensions	Length to fork face	L1	mm	2481
		Overall width	B1	mm	1265
		Mast lowered height	H1	mm	2040
		Mast extended height	H3	mm	4273
		Overhead guard height	H2	mm	2125
	Turning radius		R	mm	2230
	Front overhang		X	mm	454
	Min. right angle stacking aisle width			mm	3915
			RASA
Performance	No load/full load	Travel speed		km/h	12/14.5
		Lifting speed		mm/sec	280/420
	Max. grade ability			%	10
	Self weight			kg	4850
	Max. pull force(full load)			KN	10
Wheel & Tires	Tyres	Front		mm	23x9-10
		Rear		mm	18x7-8
	Tread	Front	B2	mm	1040
		Rear	B3	mm	980
	Wheelbase		A3	mm	1630
	Ground clearance(No load / full load)
